SKU: MT-MAX-14188
Price including Italian VAT at 22%: the final total depends on the delivery country and on the customer's status, both chosen when the order is placed — in some EU countries the rate is higher.

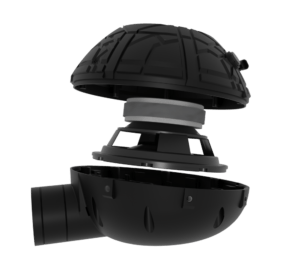

The Deep Speaker gives your resonator a powerful, rich sound and impressive volume.
Mounting positionIf this speaker is used as a third or fourth additional speaker, an extra harness for speakers 3 and 4 is needed. It is not included.
The system does not touch the exhaust system and does not modify the engine: it reads the driving data from the vehicle CAN bus (revs, pedal, gear, load) and reproduces the sound through one or more dedicated speakers, synchronised in real time with what the engine is doing. Three parts are essential: the Bridge v4 as the interface to the car, the Sound Module that generates the sound, and at least one speaker to play it.
It is the speaker that provides the foundation of the sound: low and mid tones, 120 dB, in a glass-fibre reinforced plastic housing built to survive under the car. It is the part that gives body and volume — the one you hear from outside. The High Speaker is added for the highs, the pops and the backfires; the two together are what the kits contain.
The Deep Speaker is also used as a second actuator to double the sound pressure: that is exactly the difference between the Complete kit and the Complete XXL kit, which has two of them.
On its own it makes no sound: you need Bridge v4 and Sound Module. If you add it as a third or fourth speaker to a system already fitted, you also need the extension cable for speakers 3 and 4.
Under the vehicle or in the boot cavity. The box includes flanges for horizontal and vertical mounting, a bracket, a rubber sleeve and fixings.
The Deep Speaker produces the foundation of the sound, the low and mid tones at 120 dB; the High Speaker reproduces the high tones, pops, backfires and turbo whistle at 130 dB. In the complete kits they work together.
Yes, the second works as an extra actuator to increase volume and vibration: that is the complete XXL kit set-up. For the third and fourth speaker you need the dedicated extension cable.
No: you need the Bridge to read the vehicle data and the Sound Module to generate the sound.
