SKU: MT-MMS-13833
Price including Italian VAT at 22%: the final total depends on the delivery country and on the customer's status, both chosen when the order is placed — in some EU countries the rate is higher.
The Flex programmer for ECU remapping is the software programmer for ECUs and automatic gearboxes, useful for solving problems
The Flex programmer for ECU remapping is the software programmer for remapping ECUs and automatic gearboxes, useful for solving problems in mechanical and mechatronic workshops.
Let us look at it together Modes: Remapping over OBD, remapping on the bench, remapping in boot, data logging and DTCs — all in one tool.
If you buy the Flex programmer for ECU remapping together with the Flex programmer for automatic gearbox remapping, you get one year of subscription /SW updates included for all new solutions.
Flex DataLogger: the Flex software includes the DataLogger function, which records in real time up to 60,000 parameters. That makes it easy to pin down a problem and to fine-tune the remap more effectively. Some of the values you can log with the Flex DataLogger: turbo and rail pressure, requested and actual torque, target and measured air mass, fuel quantity, exhaust gas temperature (EGT), accelerator pedal, engine speed and much more. The DataLogger is available only with the Full package.
Main features:
- Flex programmer for ECU remapping and Flex programmer for automatic gearbox remapping - More than 20,000 vehicles supported - ECU programming software that is easy to use - Lifetime warranty - Immediate support through our MasterTuning service centre
If you work in Boot mode on protected ECUs, you can pair Flex with the new Korhex add-on, which reaches the microcontroller through a single contact point: no resistors to desolder and no Boot pins wired by hand. It works only together with Flex.
Flex is the Magic Motorsport programmer for engine ECUs and automatic gearboxes: it reads, writes, clones and updates, over OBD, Bench and Boot, with data logging and DTC reading in the same tool. Just enter the vehicle details or the code on the ECU label and the software shows every connection mode available for that unit.

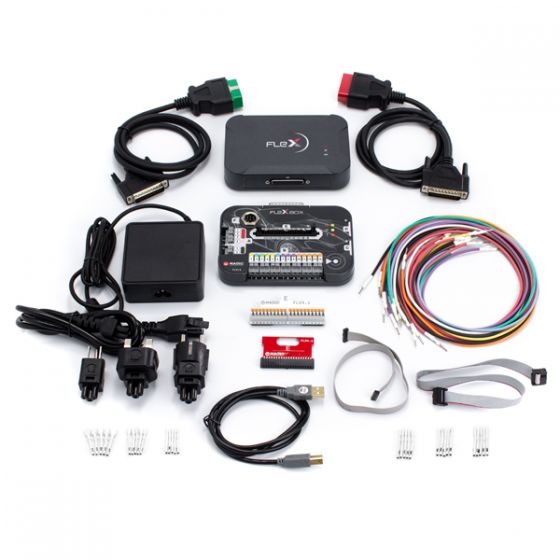

The base price covers the tool with the harnesses and adapters for working over OBD and on the bench; the software protocols are chosen according to the work you do — engine, TCU gearboxes, specific makes — and can be added later. The page has the configurator with every option: the total updates as you select.
The Korhex is the Flex add-on for the latest protected ECUs: you add it when you need to reach where Flex alone cannot.
Windows 10 x64, 2 GHz quad-core processor (Intel Core i3/i5 tenth generation or later), 8 GB of RAM, 3 GB of SSD space, USB 3.0. Internet Explorer is not supported.
Set for connecting the FLK35 cables to ECU/TCU pins, containing:
Yes: it programmes engine ECUs and automatic gearbox ECUs, with reading, writing, cloning and updating.

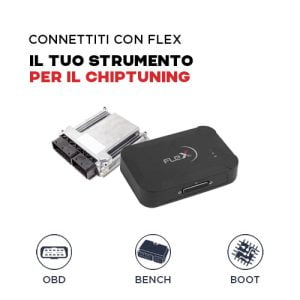

In OBD you work from the diagnostic socket without removing anything; in Bench the ECU is powered outside the car; in Boot you reach the processor directly. The Flex covers all three.
The base price covers the tool with the harnesses and adapters for OBD and Bench. The software protocols are chosen in the configurator according to the work you do, and can be added later.
Yes: the Flex works connected to a 64-bit Windows 10 PC with an internet connection. You need at least 8 GB of RAM, a 2 GHz quad core and a USB 3.0 port.
It is the add-on that lets you work on the latest protected ECUs, where the Flex on its own cannot reach.
OBD and Tricore bootloader modes. Supports
Hardware add-on for Flex that reaches the ECU microcontroller through a single contact point, i...
